RNA correlated loop

import numpy as np
import pandas as pd
import cooler
import anndata
import scanpy as sc
import matplotlib as mpl
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
from matplotlib import cm as cm
import seaborn as sns

mpl.style.use('default')
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42
mpl.rcParams['font.family'] = 'sans-serif'
mpl.rcParams['font.sans-serif'] = 'Helvetica'

indir = '/home/jzhou_salk_edu/sky_workdir/hba/loop_majortype/diff/neu/'
outdir = '/home/jzhou_salk_edu/sky_workdir/hba/rna_majortype/'

# no L5ET
leg = ['L23_IT', 'L4_IT', 'L5_IT', 'L6_IT', 'L6_IT_Car3', 'L56_NP', 'L6_CT', 'L6b', 'Amy',
       'Lamp5', 'Lamp5_LHX6', 'Sncg', 'Vip', 'Pvalb', 'Pvalb_ChC', 'Sst', 'CHD7',
       'MSN_D1', 'MSN_D2', 'Foxp2', 'SubCtx',
       # 'ASC', 'ODC', 'OPC', 'MGC', 'PC', 'EC', 'VLMC'
      ]

loopq = pd.read_hdf(f'{indir}loop_Q.hdf')
loopall = pd.read_hdf(f'{indir}merged_loop.hdf')

expr = pd.read_hdf(f'{outdir}cluster_expr.hdf').loc[leg]

from scipy.stats import rankdata

deg = np.zeros(expr.shape[1])
for i in range(len(leg)-1):
    for j in range(i+1, len(leg)):
        tmp = np.load(f'{outdir}DEG/{leg[i]}-{leg[j]}.npz')
        # deg[np.logical_and(np.abs(tmp['fc'])>1, tmp['fdr']<1e-3)] = 1
        rank = rankdata(tmp['fdr'])
        deg[rank<=100] = 1

print(deg.sum())

1131.0

chrom_size_path = f'/data/hba/loop_majortype/hg38_with_chrl.main.chrom.sizes'
chrom_sizes = cooler.read_chromsizes(chrom_size_path, all_names=True)

gene_meta = pd.read_csv('/home/jzhou_salk_edu/sky_workdir/hba/ref/gencode.v33.bed', sep='\t', index_col=None, header=None)
gene_meta.columns = ['chrom', 'start', 'end', 'gene_id', 'gene_name', 'strand']
gene_meta = gene_meta.set_index('gene_id').loc[expr.columns[deg==1]]
gene_meta = gene_meta.loc[gene_meta['chrom'].isin(chrom_sizes.index[:22])]
gene_meta

	chrom	start	end	gene_name	strand
gene
ENSG00000002746.15	chr7	43112629	43566001	HECW1	+
ENSG00000005108.16	chr7	11370365	11832198	THSD7A	-
ENSG00000006128.12	chr7	97732084	97740472	TAC1	+
ENSG00000006468.14	chr7	13891229	13991425	ETV1	-
ENSG00000007237.18	chr17	9910609	10198551	AC005747.1	-
...	...	...	...	...	...
ENSG00000286954.1	chr6	22663507	22675493	AL033539.2	+
ENSG00000287172.1	chr2	76185020	76399490	AC073091.3	+
ENSG00000287694.1	chr16	76277288	76819624	AC106741.2	+
ENSG00000287722.1	chr13	53207831	53801489	AL356295.1	+
ENSG00000287912.1	chr11	81175201	81431520	AP003464.1	+

1099 rows × 5 columns

import cooler
# from qnorm import quantile_normalize
from scipy.stats import norm
from tqdm import tqdm
from ALLCools.mcds.correlation import corr_array

def shuffle_corr_norm(rna_data, dmr_data):

    shuffle_rna_data = rna_data.copy()
    for col, data in shuffle_rna_data.items():
        n_gene = shuffle_rna_data.shape[0]
        shuffle_rna_data[col] = shuffle_rna_data[col].sample(n_gene).values

    if dmr_data.shape[0] > 50000:
        shuffle_dmr_data = dmr_data.sample(50000).copy()
    else:
        shuffle_dmr_data = dmr_data.copy()
    for col, data in shuffle_dmr_data.items():
        n_dmr = shuffle_dmr_data.shape[0]
        shuffle_dmr_data[col] = shuffle_dmr_data[col].sample(n_dmr).values

    # shuffle corr
    shuffle_corr = corr_array(shuffle_rna_data, shuffle_dmr_data)
    mu, std = norm.fit(shuffle_corr.ravel())
    return mu, std, shuffle_corr.ravel()

null_mu, null_std, shuffle_corr = shuffle_corr_norm(expr.loc[:,  gene_meta.index].T, loopq)
null_mu, null_std

(0.0026065808764122516, 0.2236524692590272)

shuffle_corr.shape

(54950000,)

gene_slop = 5000000

gene_records = []
for gene, row in tqdm(gene_meta.iterrows(), total=gene_meta.shape[0]):
    gene_rna = expr[[gene]].T

    dmr_chrom = row['chrom']
    dmr_start = row['start'] - gene_slop
    dmr_end = row['end'] + gene_slop
    sel_dmr = (loopall[0]==dmr_chrom) & (loopall[1] > dmr_start) & (loopall[5] < dmr_end)
    gene_dmr = loopq.loc[sel_dmr]

    gene_corr = corr_array(gene_rna, gene_dmr).ravel()
    gene_corr = pd.Series(gene_corr, index=gene_dmr.index)

    # pvalue = norm.sf(gene_corr.values, null_mu, null_std)
    # pvalue[pvalue > 0.5] = 1 - pvalue[pvalue > 0.5]
    # pvalue *= 2  # two tailed
    # perform multi-test correction and  q-value
    # _, q, *_ = fdrcorrection(pvalue)

    gene_corr.name = 'corr'
    gene_corr = gene_corr.reset_index()
    gene_corr['gene'] = gene
    # gene_corr["q"] = q

    # minimum filter
    # gene_corr = gene_corr[
    #     (gene_corr["q"] < min_q) & (gene_corr["corr"].abs() > min_corr)
    # ].set_index("dmr")

    # gene_records[gene] = gene_corr
    gene_records.append(gene_corr)


100%|██████████| 1099/1099 [02:42<00:00,  6.77it/s]

gene_records = pd.concat(gene_records, axis=0)
gene_records.index = np.arange(gene_records.shape[0])
gene_records

	index	corr	gene
0	1363388	0.551680	ENSG00000002746.15
1	1363389	0.613300	ENSG00000002746.15
2	1363390	0.616141	ENSG00000002746.15
3	1363391	0.591706	ENSG00000002746.15
4	1363392	0.579583	ENSG00000002746.15
...	...	...	...
11707151	1999960	0.015354	ENSG00000287912.1
11707152	1999961	0.013737	ENSG00000287912.1
11707153	1999991	0.096387	ENSG00000287912.1
11707154	1999992	0.076112	ENSG00000287912.1
11707155	2000026	0.026490	ENSG00000287912.1

11707156 rows × 3 columns

fig, ax = plt.subplots()
sns.distplot(np.random.choice(gene_records['corr'], 50000), ax=ax)
sns.distplot(np.random.choice(shuffle_corr, 50000), ax=ax)

<AxesSubplot:ylabel='Density'>

findfont: Font family ['sans-serif'] not found. Falling back to DejaVu Sans.
findfont: Generic family 'sans-serif' not found because none of the following families were found: Helvetica

t1 = rankdata(np.concatenate((gene_records['corr'].values, shuffle_corr)))[:gene_records.shape[0]]
t2 = rankdata(gene_records['corr'].values)

gene_records['FDRneg'] = (t1 - t2) / len(shuffle_corr) / t2 * gene_records.shape[0]
gene_records['FDRpos'] = (len(shuffle_corr) - t1 + t2) / len(shuffle_corr) / (gene_records.shape[0] - t2) * gene_records.shape[0]

gene_meta[['TSS', 'TES']] = gene_meta[['start', 'end']]
selg = (gene_meta['strand']=='-')
gene_meta.loc[selg, ['TSS', 'TES']] = gene_meta.loc[selg, ['TES', 'TSS']].values

loopall['start'] = loopall[[1, 2]].mean(axis=1)
loopall['end'] = loopall[[4, 5]].mean(axis=1)

gene_records['TSSdist1'] = loopall.loc[gene_records['index'], 'start'].values - gene_meta.loc[gene_records['gene'], 'TSS'].values
selg = (gene_meta.loc[gene_records['gene'], 'strand']=='-')
gene_records.loc[selg.values, 'TSSdist1'] = -gene_records.loc[selg.values, 'TSSdist1'].values

gene_records['TESdist1'] = loopall.loc[gene_records['index'], 'start'].values - gene_meta.loc[gene_records['gene'], 'TES'].values
selg = (gene_meta.loc[gene_records['gene'], 'strand']=='-')
gene_records.loc[selg.values, 'TESdist1'] = -gene_records.loc[selg.values, 'TESdist1'].values

gene_records['TSSdist2'] = loopall.loc[gene_records['index'], 'end'].values - gene_meta.loc[gene_records['gene'], 'TSS'].values
selg = (gene_meta.loc[gene_records['gene'], 'strand']=='-')
gene_records.loc[selg.values, 'TSSdist2'] = -gene_records.loc[selg.values, 'TSSdist2'].values

gene_records['TESdist2'] = loopall.loc[gene_records['index'], 'end'].values - gene_meta.loc[gene_records['gene'], 'TES'].values
selg = (gene_meta.loc[gene_records['gene'], 'strand']=='-')
gene_records.loc[selg.values, 'TESdist2'] = -gene_records.loc[selg.values, 'TESdist2'].values

gene_records.to_hdf(f'{outdir}DEG_neu_loop_5M_corr.hdf', key='data')

gene_records = pd.read_hdf(f'{outdir}DEG_neu_loop_5M_corr.hdf')

gene_records = gene_records[~gene_records['gene'].isin(gene_meta.index[gene_meta['chrom'].isin(['chrX', 'chrY'])])]

dist = 2000000

gene_records['coord1'] = 0
selp = (gene_records['TSSdist1']<=0)
gene_records.loc[selp, 'coord1'] = gene_records.loc[selp, 'TSSdist1'] / (dist/200) - 100

selp = (gene_records['TESdist1']>=0)
gene_records.loc[selp, 'coord1'] = gene_records.loc[selp, 'TESdist1'] / (dist/200) + 100

selp = (gene_records['TESdist1']<0) & (gene_records['TSSdist1']>0)
gene_records.loc[selp, 'coord1'] = gene_records.loc[selp, 'TSSdist1'] / (gene_records.loc[selp, 'TSSdist1'] - gene_records.loc[selp, 'TESdist1']) * 200 - 100

gene_records['coord2'] = 0
selp = (gene_records['TSSdist2']<=0)
gene_records.loc[selp, 'coord2'] = gene_records.loc[selp, 'TSSdist2'] / (dist/200) - 100

selp = (gene_records['TESdist2']>=0)
gene_records.loc[selp, 'coord2'] = gene_records.loc[selp, 'TESdist2'] / (dist/200) + 100

selp = (gene_records['TESdist2']<0) & (gene_records['TSSdist2']>0)
gene_records.loc[selp, 'coord2'] = gene_records.loc[selp, 'TSSdist2'] / (gene_records.loc[selp, 'TSSdist2'] - gene_records.loc[selp, 'TESdist2']) * 200 - 100

gene_records = gene_records.loc[(gene_records[['coord1','coord2']].min(axis=1)>-300) & (gene_records[['coord1','coord2']].max(axis=1)<300)]

gene_records['group1'], group1 = pd.cut(gene_records['coord1'], 300, labels=False, retbins=True)
gene_records['group2'], group2 = pd.cut(gene_records['coord2'], 300, labels=False, retbins=True)

threspos = gene_records.loc[gene_records['FDRpos']<0.1, 'corr'].min()
thresneg = gene_records.loc[gene_records['FDRneg']<0.1, 'corr'].max()
print(threspos, thresneg)

0.6027898776172802 -0.5201701393194751

thres = np.max(np.abs([thresneg, threspos]))
res = 10000

## promoter
tmp = gene_records.loc[(gene_records['corr']>thres) & (((gene_records['TSSdist1']>-res) & (gene_records['TSSdist1']<res)) | ((gene_records['TSSdist2']>-res) & (gene_records['TSSdist2']<res))), 'gene'].unique()
print(tmp.shape[0], tmp.shape[0]/gene_records['gene'].unique().shape[0])
np.savetxt(f'{outdir}gene_loopposcorr_tss.csv.gz', tmp, delimiter='\n', fmt='%s')

tmp = gene_records.loc[(gene_records['corr']>thres) & (((gene_records['TESdist1']>-res) & (gene_records['TESdist1']<res)) | ((gene_records['TESdist2']>-res) & (gene_records['TESdist2']<res))), 'gene'].unique()
print(tmp.shape[0], tmp.shape[0]/gene_records['gene'].unique().shape[0])
np.savetxt(f'{outdir}gene_loopposcorr_tes.csv.gz', tmp, delimiter='\n', fmt='%s')

962 0.8761384335154827
877 0.7987249544626593

tmp = gene_records.loc[(gene_records['corr']>thres) & (((gene_records['TSSdist1']>-res) & (gene_records['TESdist1']<res)) & ((gene_records['TSSdist2']>-res) & (gene_records['TESdist2']<res))), 'gene'].unique()
print(tmp.shape[0], tmp.shape[0]/gene_records['gene'].unique().shape[0])
np.savetxt(f'{outdir}gene_loopposcorr_genebodyboth.csv.gz', tmp, delimiter='\n', fmt='%s')

tmp = gene_records.loc[(gene_records['corr']<-thres) & (((gene_records['TSSdist1']>-res) & (gene_records['TESdist1']<res)) & ((gene_records['TSSdist2']>-res) & (gene_records['TESdist2']<res))), 'gene'].unique()
print(tmp.shape[0], tmp.shape[0]/gene_records['gene'].unique().shape[0])

tmp = gene_records.loc[(gene_records['corr']>thres) & (((gene_records['TSSdist1']>-res) & (gene_records['TESdist1']<res)) | ((gene_records['TSSdist2']>-res) & (gene_records['TESdist2']<res))), 'gene'].unique()
print(tmp.shape[0], tmp.shape[0]/gene_records['gene'].unique().shape[0])
np.savetxt(f'{outdir}gene_loopposcorr_genebodyone.csv.gz', tmp, delimiter='\n', fmt='%s')

898 0.8178506375227687
44 0.04007285974499089
1070 0.9744990892531876

tmp = gene_records.loc[(gene_records['corr']>threspos) | (gene_records['corr']<thresneg)].groupby(['group1','group2'])['corr'].mean()
groupsigcorr = np.zeros((300, 300)) / 0
groupsigcorr[(tmp.index.get_level_values('group1'), tmp.index.get_level_values('group2'))] = tmp.values

tmp = gene_records.groupby(['group1','group2'])['corr'].mean()
groupcorr = np.zeros((300, 300)) / 0
groupcorr[(tmp.index.get_level_values('group1'), tmp.index.get_level_values('group2'))] = tmp.values

tmp = gene_records.loc[gene_records['corr']>threspos].groupby(['group1','group2'])['corr'].count()
groupposcount = np.zeros((300, 300))
groupposcount[(tmp.index.get_level_values('group1'), tmp.index.get_level_values('group2'))] = tmp.values

tmp = gene_records.loc[gene_records['corr']<thresneg].groupby(['group1','group2'])['corr'].count()
groupnegcount = np.zeros((300, 300))
groupnegcount[(tmp.index.get_level_values('group1'), tmp.index.get_level_values('group2'))] = tmp.values

tmp = gene_records.loc[(gene_records['corr']>threspos) | (gene_records['corr']<thresneg)].groupby(['group1','group2'])['corr'].count()
groupsigcount = np.zeros((300, 300))
groupsigcount[(tmp.index.get_level_values('group1'), tmp.index.get_level_values('group2'))] = tmp.values

tmp = gene_records.groupby(['group1','group2'])['corr'].count()
groupcount = np.zeros((300, 300))
groupcount[(tmp.index.get_level_values('group1'), tmp.index.get_level_values('group2'))] = tmp.values

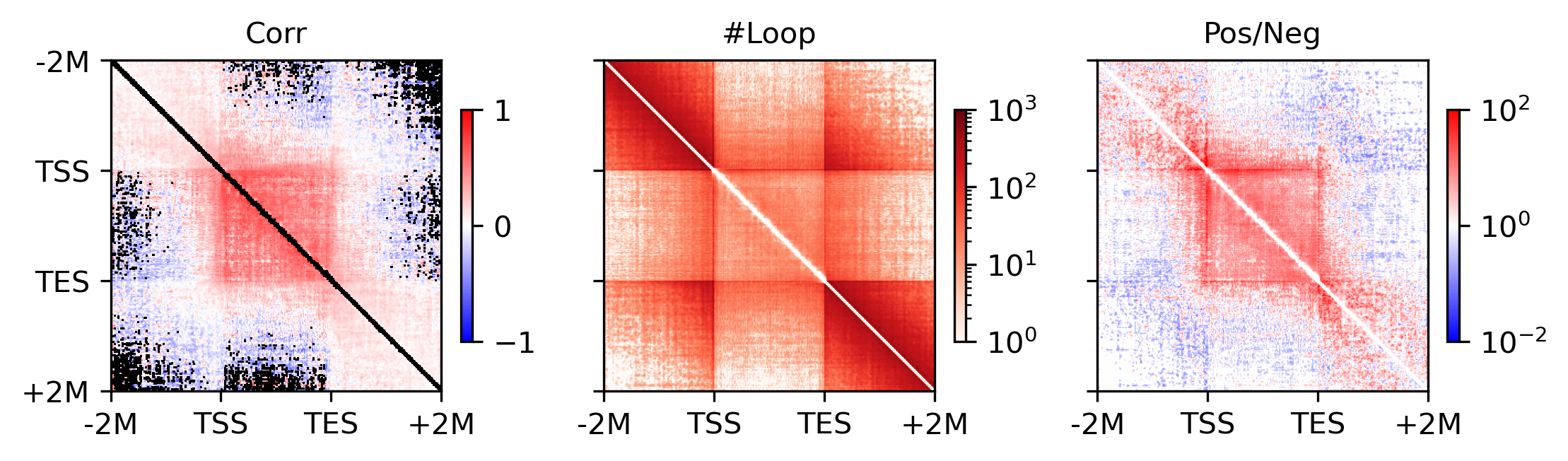

cmap = mpl.cm.bwr
cmap.set_bad('black', 1.0)

fig, axes = plt.subplots(1, 3, figsize=(6,2), sharex='all', sharey='all', dpi=300)
# ax = axes[0]
# plot = ax.imshow(groupcorr, vmin=-1, vmax=1, cmap=cmap)
# fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)
for i,xx in enumerate([groupcount, groupposcount, groupnegcount]):
    ax = axes[i]
    plot = ax.imshow(xx, cmap='Reds', norm=LogNorm(vmin=1, vmax=1e3))
    ax.set_title(['All', 'Pos', 'Neg'][i], fontsize=10)

ax.set_xticks(np.arange(-0.5, 300.5, 100))
ax.set_yticks(np.arange(-0.5, 300.5, 100))
ax.set_xticklabels(['-5M', 'TSS', 'TES', '+5M'])
ax.set_yticklabels(['-5M', 'TSS', 'TES', '+5M'])

# ax.set_xlabel('Zscore log Q anova')
plt.tight_layout()

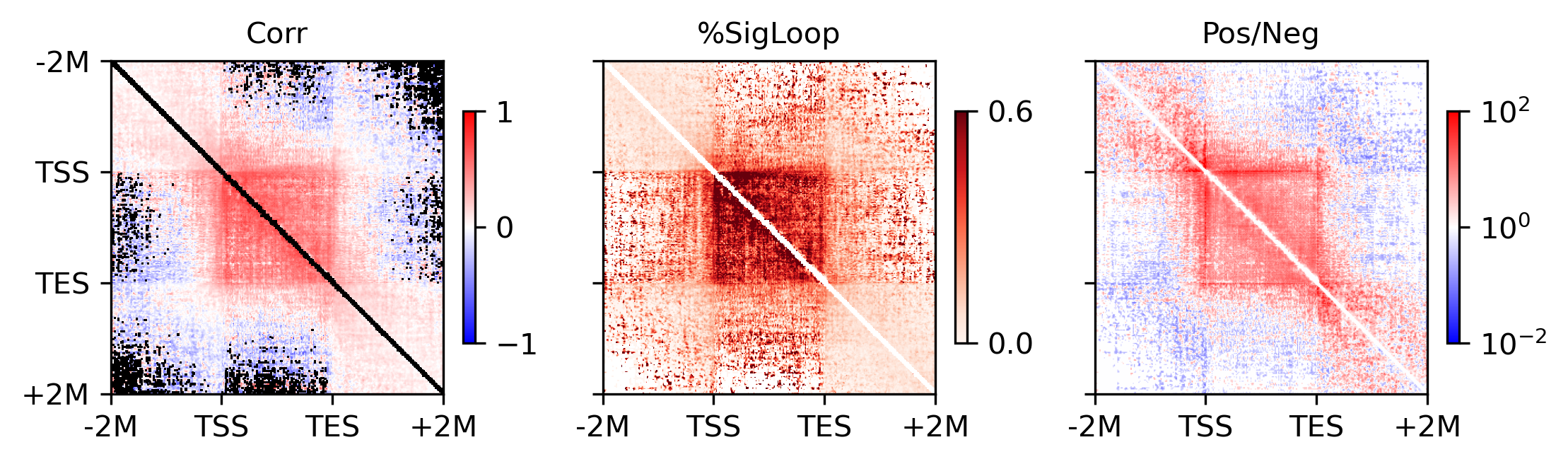

cmap = mpl.cm.bwr
cmap.set_bad('black', 1.0)

fig, axes = plt.subplots(1, 3, figsize=(6,2), sharex='all', sharey='all', dpi=300)
# ax = axes[0]
# plot = ax.imshow(groupcorr, vmin=-1, vmax=1, cmap=cmap)
# fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)
for i,xx in enumerate([groupcount, groupposcount, groupnegcount]):
    ax = axes[i]
    plot = ax.imshow(xx, cmap='Reds', norm=LogNorm(vmin=1, vmax=1e3))
    ax.set_title(['All', 'Pos', 'Neg'][i], fontsize=10)

ax.set_xticks(np.arange(-0.5, 300.5, 100))
ax.set_yticks(np.arange(-0.5, 300.5, 100))
ax.set_xticklabels(['-2M', 'TSS', 'TES', '+2M'])
ax.set_yticklabels(['-2M', 'TSS', 'TES', '+2M'])

# ax.set_xlabel('Zscore log Q anova')
plt.tight_layout()
# plt.savefig('DEG_loop_sigcorr_count.pdf', transparent=True)

cmap = mpl.cm.bwr
cmap.set_bad('black', 1.0)

fig, axes = plt.subplots(1, 3, figsize=(7.5,2.5), sharex='all', sharey='all', dpi=300)
ax = axes[0]
plot = ax.imshow(groupcorr, vmin=-1, vmax=1, cmap=cmap)
fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)

ax = axes[1]
# plot = ax.imshow(groupcount, cmap='Reds', norm=LogNorm(vmin=1, vmax=1e3))
plot = ax.imshow(groupsigcount / groupcount, cmap='Reds', vmin=0, vmax=0.6)
fig.colorbar(plot, ax=ax, ticks=[0, 0.6], shrink=0.5, fraction=0.1)

ax = axes[2]
plot = ax.imshow((groupposcount+1) / (groupnegcount+1), cmap='bwr', norm=LogNorm(vmin=1e-2, vmax=1e2))
fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)

ax.set_xticks(np.arange(-0.5, 300.5, 100))
ax.set_yticks(np.arange(-0.5, 300.5, 100))
ax.set_xticklabels(['-2M', 'TSS', 'TES', '+2M'])
ax.set_yticklabels(['-2M', 'TSS', 'TES', '+2M'])

for ax,xx in zip(axes, ['Corr', '%SigLoop', 'Pos/Neg']):
    ax.set_title(xx, fontsize=10)

# ax.set_xlabel('Zscore log Q anova')
plt.tight_layout()
# plt.savefig('DEG_loop_sigcorr_mean.pdf', transparent=True)

cmap = mpl.cm.bwr
cmap.set_bad('black', 1.0)

fig, axes = plt.subplots(1, 3, figsize=(7.5,2.5), sharex='all', sharey='all', dpi=300)
ax = axes[0]
plot = ax.imshow(groupcorr, vmin=-1, vmax=1, cmap=cmap)
fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)

ax = axes[1]
plot = ax.imshow(groupcount, cmap='Reds', norm=LogNorm(vmin=1, vmax=1e3))
fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)

ax = axes[2]
plot = ax.imshow((groupposcount+1) / (groupnegcount+1), cmap='bwr', norm=LogNorm(vmin=1e-2, vmax=1e2))
fig.colorbar(plot, ax=ax, shrink=0.5, fraction=0.1)

ax.set_xticks(np.arange(-0.5, 300.5, 100))
ax.set_yticks(np.arange(-0.5, 300.5, 100))
ax.set_xticklabels(['-2M', 'TSS', 'TES', '+2M'])
ax.set_yticklabels(['-2M', 'TSS', 'TES', '+2M'])

for ax,xx in zip(axes, ['Corr', '#Loop', 'Pos/Neg']):
    ax.set_title(xx, fontsize=10)

# ax.set_xlabel('Zscore log Q anova')
plt.tight_layout()
# plt.savefig('DEG_loop_sigcorr_mean.pdf', transparent=True)

for i in range(3):
    for j in range(i,3):
        print(groupposcount[(i*100):(i*100+100), (j*100):(j*100+100)].sum() /
              (groupposcount[(i*100):(i*100+100), (j*100):(j*100+100)].sum() +
               groupnegcount[(i*100):(i*100+100), (j*100):(j*100+100)].sum()))

0.7383856476742864
0.7817007006734098
0.4595160929816719
0.9778063774148058
0.6653371514283767
0.7132464224170225

for i in range(3):
    for j in range(i,3):
        print(groupsigcount[(i*100):(i*100+100), (j*100):(j*100+100)].sum() / groupcount[(i*100):(i*100+100), (j*100):(j*100+100)].sum())

0.08403407522975455
0.2336316443198828
0.12759025106675745
0.4697464723512085
0.1907666694847466
0.07912202825558069
